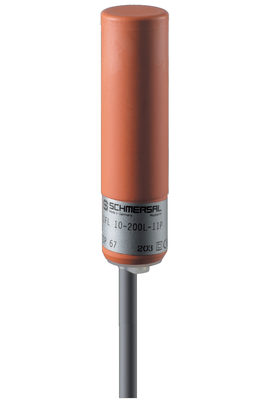

Cảm biến IFL 10-200L-11P
Thông số kỹ thuật cảm biến Schmersal IFL 10-200L-11P
đại lý schmersal | đại lý IFL 10-200L-11P
nhà phân phối schmersal | nhà phân phối IFL 10-200L-11P
- Thermoplastic enclosure
- DC 4-wire
- Long design
- Double-insulated
- Design Ø 20 mm
Ordering data
| Product type description |
IFL 10-200L-11P |
| Article number (order number) |
101126738 |
| EAN (European Article Number) |
4030661050652 |
| eCl@ss number, version 12.0 |
27-27-40-01 |
| eCl@ss number, version 11.0 |
27-27-01-01 |
| eCl@ss number, version 9.0 |
27-27-01-01 |
| ETIM number, version 7.0 |
EC002714 |
| ETIM number, version 6.0 |
EC002714 |
Approvals – Standards
| Certificates |
CCC |
General data
| Standards |
DIN VDE 0660-208 EN IEC 60947-5-2 |
| Housing construction form |
Cylinder smooth |
| Installation conditions (mechanical) |
not flush |
| Housing material |
Plastic |
| Active area |
Plastic |
| Material of the terminal fixing |
Plastic |
| Gross weight |
126 g |
General data – Features
| Integral system diagnostics, status |
Yes |
| Number of cable wires |
4 |
Mechanical data – Switching distances according EN IEC 60947-5-3
| Nominal switching distance Sn |
10 mm |
Mechanical data – Connection technique
| Length of cable |
2 m |
| Termination |
Cable |
| Wire cross-section |
0.25 mm2 |
| Material of the Cable mantle |
Plastic |
Mechanical data – Dimensions
| Diameter of sensor |
20 mm |
| Length of sensor |
79 mm |
| Width of sensor |
20 mm |
| Height of sensor |
20 mm |
Ambient conditions
| Degree of protection |
IP67 |
| Ambient temperature |
-25 … +70 °C |
| Protection class |
II |
Electrical data
| No-load supply current I0, typical |
5.5 mA |
| Rated operating voltage |
10 … 60 VDC |
| Operating current |
400 mA |
| Switching element |
NO contact and NC contact (antivalent) |
| Protection circuit integrated |
inductive interference protection Protection against polarity reversal |
| Switching frequency, approx. |
3,500 Hz |
| VOLT_TYPE_RANGE |
DC |
Electrical data – Digital Output
| Voltage drop Ud, maximum |
1.5 V |
| Current at Voltage drop Ud |
0.4 A |
| Design of control elements |
p-type |
Status indication
| Note (Integral System Diagnostics, status ) |
yellow LED |
Scope of delivery
| Note (scope of delivery, number and type) |
Clamp H 20 is included in delivery |
